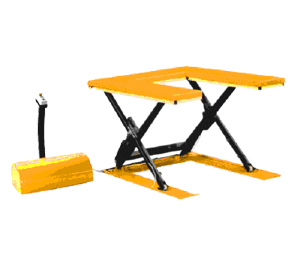

FX-U-Series
The capacity range of these models is from 1000kg to 1500kg;
the range of platform dimensions is from 820mm W x1300mm L to 1200mm W x1600mm L;
the range of Max.lifting height is from 860mm to 1050mm.
these models are perfect to handle heavy loads, yet is relatively small and light enough to be moved around the facility or job-site.
Powerful lifting motor makes lifting more steadily and smoothly.
Models with Remote control station offers push button operation and safety stop switch.
Models with L stand for low profile lift table, which is more suitable for low profile applications.


Specifications
Model Unit FX100-U FX100-UW FX150-U FX150-UW
Load capacity kg 1000 1000 1500 1500
Lowest height mm 85 85 105 105
Max.height mm 860 860 860 860
Table dimension mm 1420*1140 1420*1340 1600*1160 1600*1360
"U"inter dimension mm 1030*560 1030*560 1030*760 1030*760
Net weight kg 280 380 380 380
