PS-AF Series

PS200-85FF/200-120FF/400-85FF/400-120FF/400-150FF/400-170FF

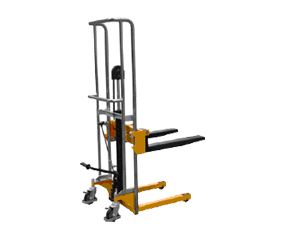

Liftstar PS200FF/PS400FF series fixed fork type Manul Platform Stacker , with 200/400KGS capacity is designed for light duty working conditions. Product design is simple, reliable, turning agile, easy to operate.


•With foot brake
•Manual/foot lifting, foot lowering
•Compact vehicle design suitable for narrow aisles and confined spaces.
•Platform is optional



Specifications
Modle Unit PS200-85AF PS200-120AF PS400-85AF PS400-120AF PS400-150AF PS400-170AF
Capacity kg 200 200 400 400 400 400
Max.fork height mm 850 1200 850 1200 1500 1700
Min.fork height mm 85 85 85 85 85 85
Fork Length mm 600 600 650 650 650 650
Adjustable fork width mm 215-500 215-500 235-500 235-500 235-500 235-500
Load roller mm φ75 φ75 φ75 φ75 φ75 φ75
Steering wheel mm φ125 φ125 φ125 φ125 φ125 φ125
Overall height mm 1080 1435 1060 1410 1710 1910
Overall width mm 560 560 590 590 590 590
Overall Length mm 1000 960 1040 1040 1040 1100
Net weight kg 58 65 75 81 85 95


Brochures
PS-AF 1Series
