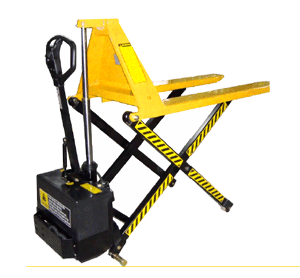

EHLD-I Series

EHLD-I Series

1.These electric high lift pallet trucks have further advantages when

working with heavy items and constant daily use.They are ideal as combined

hand pallet truck nad lift table.

2.Adjustable stabilizers extended to the fioor automatically when the forks

reach a height of 420mm,to ensure maximum stability and optimum braking.

3.The handle automatically returns to its upright position when released.

4.CE certificate.

POWER UNIT:
1.Powered by 12 voltage battery,driven by a good effective pump station.
2.13~15 seconds pumping from the bottom to the top.
3.Safety overload system prevents the truck from being used beyond its rated capacity.



Specifications
Model   EHLD10-520/680 EHLD10-520i/680I EHLD15-520/680 EHLD15-520i/680I
Capacity kg 1000 1000 1500 1500
Fork height mm 85/800 85/800 85/800 85/800
Fork width mm 520/680 520/680I 520/680 520/680I
Fork length mm 1140 1140 1100 1100
Battery V/Ah 12/66 12/66 12/66 12/66
N.W kg 135/146 142/148 149/160 157/163
Packing size 4pcs mm 2180x580x710
2180x740x710
2180x580x710
2180x740x710
2180x580x710
2180x740x710
2180x580x710
2180x740x710
Q'ty/20GP   60/42 60/42 60/42 60/42
