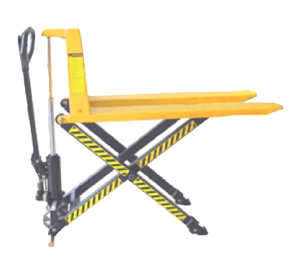

HLD-Q Series
HLD-Q Series

1.Extremely easy to pump

2.Ideal combination of hand pallet truck and lift table

3.Quick-lift as standard with automatic transfer to normal lifting with loads over 150kg

4.Automatic descending speed control by a uniquely hydraulic valve,it will prevent cargo damage from fast descending.

5.Adjustable stabilizers extended to the floor automatically when the forks reach a height of 420mm,to ensure maximum stability and optimum.

6.CE certificate.



Specifications
Model   HLD10-520Q HLD10-680Q HLD15-520Q HLD15-680Q
Capacity kg 1000 1000 1500 1500
Fork height mm 85/800 85/800 85/800 85/800
Fork width mm 520 680 520 680
Fork length mm 1140 1140 1100 1100
N.W. kg 105 112 118 125
Packing size 4psc mm 1930X580X720 1930X740X720 1930X580X770 1930X740X720
Q'ty/20GP pc 120 96 120 96
