WS10SS-16/20/25/30/33

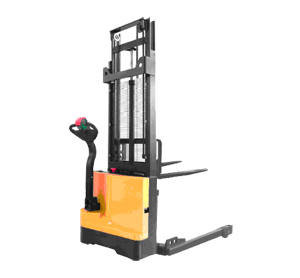

WS10SS-16/20/25/30/33  Cap.1000KGS Light duty straddle stacker



1.Price is so low that procurement cost is greatly reduced.
2.Labor-saving: less labor required because of high transportation efficiency.
3.Operation simplified:less effort and high returns can be achieved by our products.
4.Mounted Forklift profile steel mast,different with Manual&Semi WS10s series mast are much stronger and straight when full loading.
5.Liftstar special design supporting leg ensure leg Non-deformation for years operation.
6.Driving controller:Curtis 1212 controller and can be regulated by Curtis Hand set easily.
7.Longer handle design:Very light and easy turning design which is very comfortable.
8.Low profile mast design:Lower height of mast is less than 2000mm/78inch suitable for most of doors.


Specifications
Model   WS10S-16/20/25/30/33 WS10SS-16/20/25/30/33
Vechile   Fork over stacker Straddle leg stacker
Capacity kg 1000 1000
Load center mm 600 600
Lifting height mm 1600/2000/2500/3000/3300 1600/2000/2500/3000/3300
Fork length mm 1150 1070
Fork width mm 160 100
Out width of th fork mm 560 Adjustable Max.787mm
Travel speed km/h 2.5laden/3unladen 2.5laden/3unladen
Lift speed mm/s 70mm/s(laden/unladen) 70mm/s(laden/unladen)
Battery V/Ah (12V/80Ah)*2 (12V/80Ah)*2
