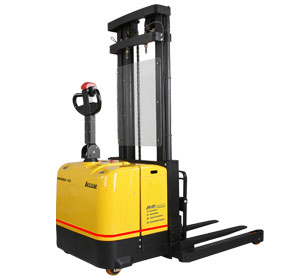

WS92-15/16/18/20- CAP.1,500/1,600/1,800/2,000KGS AC&EPS Straddle legs stackers

WS92-15/16/18/20 AC&EPS straddle stackers, with Capacity 1,500/1,600/1,800/2,000KGS, with duplex mast and  equipped with Liftstar-Made EPS and AC drive system.

Standard equipped with 280Ah lead-acid sideway battery. 3 different lowering speed, slow-medium-fast suitable for different situations. Chassis design life over 10 years. Injection mold cover, Stellana Brand Wheels offer best quality. Liftstar-made EPS and Curtis controllers can real-time protect the vehicle control from circuit overvoltage, under voltage, over current, excess temperature, Short circuit. Double controllers can safely reduce the traveling speed under the condition of Mast lifting and sharp turn in the corner. The lifting Limit function can protect hydraulic motor, save energy and battery. Self-made handle can be modified for cold store application.

If you are looking for products to loading-unloading in container truck, or high-racking pallet stacking, WS92 series will be your choice

• 200A Curtis transistor controller

• High performance AC driving Motor,

• Liftstar EPS controller

• EPS system as standard, low energy consumption, low noise

• Electromagnetic brake

• Floating system with double spring and reinforcing traction cylinder.

• Automatic-Speed limited control when lifting

• Cold-drawn steel mast profile.
