WP41-25

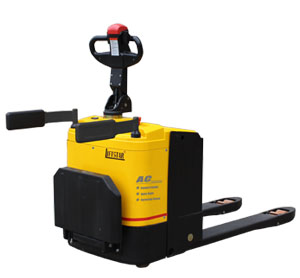

WP41-25 - CAP. 2,500KGS  Rider Pallet Truck



WP41-25 As a stand-on driving type electric truck suitable for high strength condition use, it provides users with safe, comfortable, reliable logistic solutions. The AC driving motor provides constant strong power and it is maintenance free.



•  Steel cover:one piece steel cover, which reduce the cover damage greatly.
•  One piece fork: with 8mm thickness. Liftstar proudly declare that there are no possibility of deformation under high frequency using.
•  Two pieces handle tube: two piece dismountable handle tube, made from high quality mold, which make assembly and dismantle of handle tube to be much easier.
•  Equipped with Curtis 1230 controller.
•  Unique design of Link Chain from handle to driving section, no wire abrasion happens on our trucks because all wires are fixed when the truck is working.
•  Equipped with high performance AC driving Motor.



Specifications
Model Unit WP41-25
Capacity kg 2500
Load center mm 600
Lowered height of fork mm 85
Fork length mm 1150
Fork width mm 165
Overall length mm 1916(folded)2426
Min.turning radius mm 1759/2167
Travel speed km/h 6landen/7unladen
Lift speed m/s 0.056laden/0/06unladen
Battery Ah 150or 210Ah industry battery
Control system   CURTIS 1230
