WP49-20/25

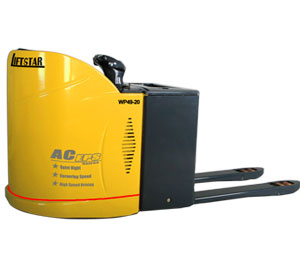

Liftstar high speed rider pallet truck WP49-20/25 One Hand Operating, high speed driving, better protection for operator.

The advantage of WP49-20/25
1.Corning Speed, automatic reduces the driving speed when turning in corner.
2.Better Protection for operators. The driver stands inside the steer structure, lower risk of hurt.
3.Floating Driving system ensure the comfortable operating feeling.
4.Easy replace load-wheel
5.AC Curtis transistor controller
6.Big capacity of battery for lone time labour
7.High performance AC driving Motor,
8.Liftstar EPS controller, you can move the handle by one figer



Specifications
Model Unit WP49-20/25
 Load Capacity  kg 2000/2500Kgs
 Load center mm  600
 Max.lifting height mm  120
 Max.fork lifting height mm   205
 Min.fork lowered height mm 85
 Fork length mm  1150
Overall fork width  mm  685
 Overall length mm   2465
 Overall width mm 790
 Min.Turning radius mm  2278
 Trevel speed  km/h 10laden/10unladen
Lift speed   mm/s 56laden/60unladen
Lower speed  mm/s  57laden/59unladen
 Gradeability 10laden/10unladen
 Wheel type   PU
 Driving wheel size mm  248*75
Balance Wheel size  mm 140*60
 Drive motor KW  AC 3
Lift motor  KW  DC 2
 Steering motor KW  DC0.15
 Battery voltage/Capacity V/Ah   24V/280Ah
 Brake   Electromagnetice
 Controller   CURTIS/ZAPI
