WP48-35

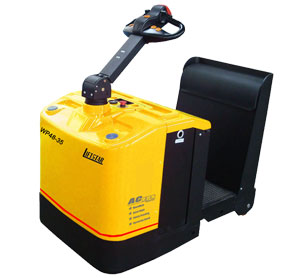

WP48-35 - CAP. 4,500KGS AC & EPS Tow Tractor



WP48-35 is a stand-on type electric tractor, Equipped with Liftstar-Made EPS and AC driving system. it provides users with safe, comfortable, reliable logistic solutions. The EPS can reduce the labor intensity. The AC driving motor provides constant strong power and it is maintenance free. Standard equipped with large 280Ah or 360Ah capacity battery, can meet customers' requirement of continuous working, side-way battery design is convenient for the customer to replace the battery. Injection mold cover, Stellana Brand Wheels offer best quality. Double controllers can real-time protect the vehicle control circuit from overvoltage, under voltage, over current, excess temperature, Short circuit. The lifting Limit function can protect hydraulic motor, save energy and battery. Self- made handle can be modified for cold store application.



• 200A Curtis transistor controller

• High performance AC driving Motor,

• Liftstar EPS controller

• EPS system as standard, low energy consumption, low noise

• Electromagnetic brake

• Automatic slow down technology for corner sharp turn

• Ergonomic Self-made handle with safety reversing switch and horn

• Floating system with double spring and reinforcing traction cylinder.

• Battery discharge indicator with hour meter

• Key switch to limit access to approved personnel

• Intelligent battery charger



Specifications
• Vehicle Type [ Electric Tow Tractor   WP48-35 ]
• Capacity [ 4,500KGS ]
• Power [ 200A Curtis transistor controller
High performance AC driving Motor
]
• Wheel Base [ 1055mm ]
• Turning Radius [ 1255mm ]
• Vehicle Dimensions [ 790 w x 1369 Lx1402H mm ]
• Travel Speed, laden/unladen [ 5.5/6 km/h ]
• Gradeability, laden/unladen [ 5º/ 7º ]
• Ground Clearance [ 34.5mm ]
• Battery Capacity [ 280Ah or 360Ah industrial industry battery ]
• Charger [ Intelligent Battery Charger ]
